Model: SPE-STMK.
Super Bio-soluble fiber module adopts high-quality Super Bio-soluble fiber blanket (BioFiber ALT), being folded and compressed to certain storage. The Bio-soluble fiber module is a new type of refractory furnace lining products aiming at simplifying and speeding up furnace construction and improving the integrity of furnace lining. The Bio-soluble fiber module can be directly fixed on the anchor of steel plate. Thus, it has improved the refractory and insulating integrity of furnace and pushed forward the progress of furnace construction technology. It can be used under the temperature of 1100℃, and satisfying the Europe Directive 97/69/EC.
The classification temperature(℃): 1050, 1260.
Characteristics:
* Excellent flexibility,no gap after installation.
* Excellent insulation performace and integrity of furnace lining.
* High safety with anchor,simple operation.
* Low thermal conductivity and heat storage.
* Excellent thermal and physical stability.
Applications:
* Insulation material for the furnace lining in the fields of metallurgy, petrochemical, construction and machinery.
* Heat recovery steam generator and duct lining in power industry.
* Insulation lining of kiln in ceramic,glass industry.
* Insulation lining of heat treatment furnace.
* Burner blocks,Induction furnace covers.
Technical Index:
| Type | SPE-STMK |
Classification
Temperature℃ | 1050 | 1260 |
| Operation Temperature℃ | ＜750 | ≤1100 |
| DensityKg/m3 | 220 |
| Permanent Linear Shrinkage ％ | 900℃X24H≤-1 | 1100℃X24H≤-1 |
Thermal Conductivity
（w/m.k） | 0.09（400℃）
0.176（600℃ | 0.09（400℃）
0.22（1000℃） |
| Size（mm） | 300×300×200
or as customers’size |
| Packing | Carton or Woven Bag |
| Quality Certificate | Test Report from DIFK,EN1094-1, MSDS
ISO9001-2000, ISO9001-2008,GBT3003-2006 |

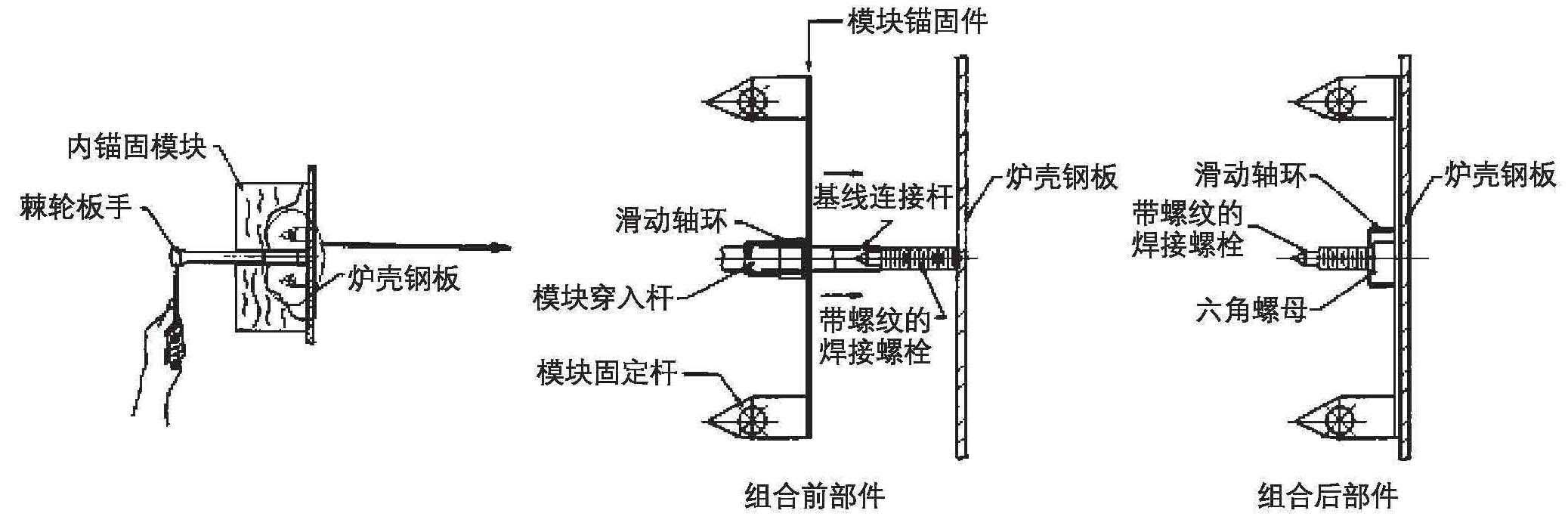

Inner Anchor: Arrange the welding bolt inside of furnace, fix the modules inside of furnace by the anchor which installed inside of modules. We should design the module arrangement in advance and confirm the exact position of bolt.
Outer Anchor: Make holes in the furnace shell, the bolts pass the furnace shell and fix the modules at outside of furnace. We should design the module arrangement in advance, do not need to weld the bolt, the bolts lock the modules tightly.
